SM Switch Lexo2 1-gang 2-way 10AX 250VAC IP20, white Code:
LK65012
|
Availability:
In Stock
|
Weight:
0.051 kg/pc
|
|
Wholesale qty:
10pc
|
|
|
|

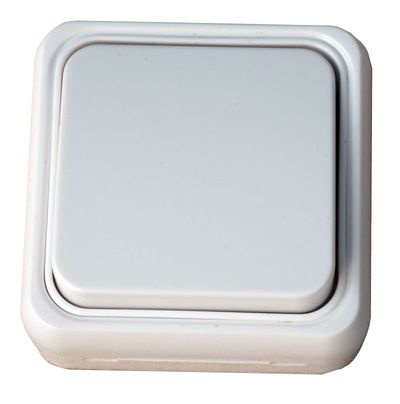

SM Switch Lexo2 1-gang 2-way 10AX 250VAC IP20, white
Technical Data: 10AX 250VAC
Frequency: 50Hz
Colour: White
Main material: PC (Halogen free)
IP-Class: IP20
Max. Ambient temp.: 45°C
Fire hazard test: 650°C/850°C (IEC60695-2-1)
The product complies with the standard(s):
EN60669-1: 1999+A1:2002
The product is in conformity with the provisions of the following European directive(s):
LVD (2006/95/EC)
RoHS (2002/95/EC)
Certificate(s): CE, Semko
Technical Info:
Wiring diagram printed on the rear side.
Thermoplastic in the rocker and cover plate.
Screw terminal. Flush wiring.
Space enough for cable up to 2,5mm under the cover plate.
Base bottom plate act at the same time as a positioning guide by the door frame under installation. |
Screw terminal:
LK65012:
LK65015:

|
| Code |
Description |
Package |
| LK65012 |
SM Switch Lexo2 1-gang 2-way 10AX 250VAC IP20, white |
10/200 |
| LK65015 |

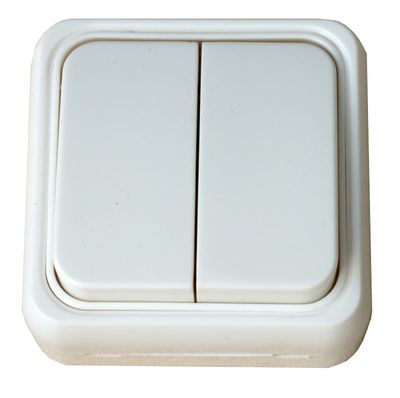

SM Switch Lexo2 2-gang 1-way 10AX 250VAC IP20, white |
10/200 |
|
|
|
File description
|
File type
|
Download link
|
|
Assembly Instruction
|
PDF
|
Download link
|
|
|
|
